LCP 56. 信物传送
题目描述
欢迎各位勇者来到力扣城，本次试炼主题为「信物传送」。
本次试炼场地设有若干传送带，matrix[i][j] 表示第 i 行 j 列的传送带运作方向，"^","v","<",">" 这四种符号分别表示 上、下、左、右 四个方向。信物会随传送带的方向移动。勇者每一次施法操作，可临时变更一处传送带的方向，在物品经过后传送带恢复原方向。
.gif)
{:width=300px}
通关信物初始位于坐标 start处，勇者需要将其移动到坐标 end 处，请返回勇者施法操作的最少次数。
注意：
start和end的格式均为[i,j]

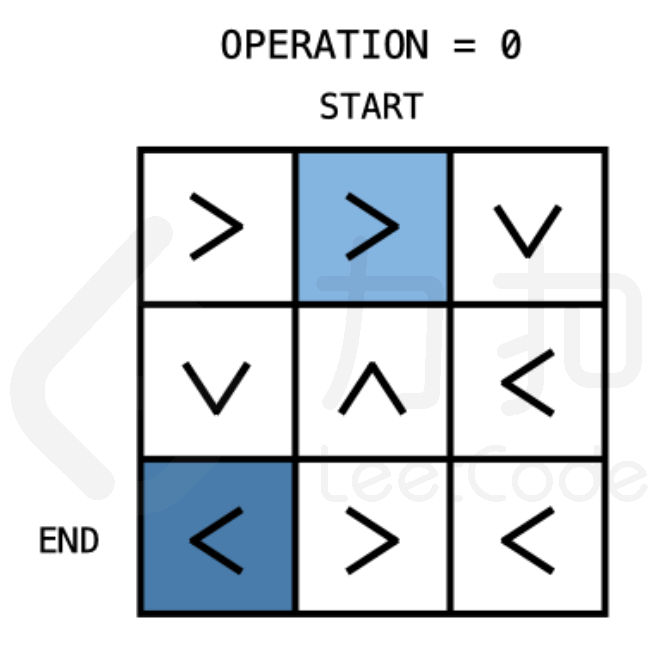

示例 1:
输入：
matrix = [">>v","v^<","<><"], start = [0,1], end = [2,0]输出：
1解释： 如上图所示 当信物移动到
[1,1]时，勇者施法一次将[1,1]的传送方向^从变更为<从而信物移动到[1,0]，后续到达end位置 因此勇者最少需要施法操作 1 次
示例 2:
输入：
matrix = [">>v",">>v","^<<"], start = [0,0], end = [1,1]输出：
0解释：勇者无需施法，信物将自动传送至
end位置
示例 3:
输入：
matrix = [">^^>","<^v>","^v^<"], start = [0,0], end = [1,3]输出：
3
提示：
matrix中仅包含'^'、'v'、'<'、'>'0 < matrix.length <= 1000 < matrix[i].length <= 1000 <= start[0],end[0] < matrix.length0 <= start[1],end[1] < matrix[i].length
解法
方法一：双端队列 BFS(0-1 BFS)
每走到一个格子 $(i, j)$，有 $4$ 个方向可以走，如果方向与当前格子的方向相同，那么不需要施法，否则需要施法一次。
因此，我们可以使用 BFS 求出从起点到终点的最短路径。
我们定义一个双端队列 $q$，存储当前可以到达的格子，每次从队首取出一个格子 $(i, j)$，然后向四个方向扩展，如果扩展的格子 $(x, y)$ 不需要施法，那么将其加入队首，否则加入队尾。当我们第一次到达终点时，就得到了最短路径。
时间复杂度 $O(m \times n)$，空间复杂度 $O(m \times n)$。其中 $m$ 和 $n$ 分别是矩阵的行数和列数。
Python3
class Solution:
def conveyorBelt(self, matrix: List[str], start: List[int], end: List[int]) -> int:
dirs = (-1, 0, 1, 0, -1)
d = {"^": 0, "v": 2, "<": 3, ">": 1}
i, j = start
q = deque([(i, j)])
m, n = len(matrix), len(matrix[0])
dist = [[inf] * n for _ in range(m)]
dist[i][j] = 0
while 1:
i, j = q.popleft()
if i == end[0] and j == end[1]:
return int(dist[i][j])
for k in range(4):
x, y = i + dirs[k], j + dirs[k + 1]
t = dist[i][j] + int(k != d[matrix[i][j]])
if 0 <= x < m and 0 <= y < n and t < dist[x][y]:
dist[x][y] = t
if dist[x][y] == dist[i][j]:
q.appendleft((x, y))
else:
q.append((x, y))
Java
class Solution {
public int conveyorBelt(String[] matrix, int[] start, int[] end) {
int[] dirs = {-1, 0, 1, 0, -1};
Map<Character, Integer> d = new HashMap<>(4);
d.put('^', 0);
d.put('>', 1);
d.put('v', 2);
d.put('<', 3);
Deque<int[]> q = new ArrayDeque<>();
q.offer(new int[] {start[0], start[1]});
int m = matrix.length, n = matrix[0].length();
int[][] dist = new int[m][n];
for (int[] row : dist) {
Arrays.fill(row, 1 << 30);
}
dist[start[0]][start[1]] = 0;
while (true) {
int[] p = q.poll();
int i = p[0], j = p[1];
if (i == end[0] && j == end[1]) {
return dist[i][j];
}
for (int k = 0; k < 4; ++k) {
int x = i + dirs[k], y = j + dirs[k + 1];
int t = dist[i][j] + (k == d.get(matrix[i].charAt(j)) ? 0 : 1);
if (x >= 0 && x < m && y >= 0 && y < n && t < dist[x][y]) {
dist[x][y] = t;
if (dist[x][y] == dist[i][j]) {
q.offerFirst(new int[] {x, y});
} else {
q.offerLast(new int[] {x, y});
}
}
}
}
}
}
C++
class Solution {
public:
int conveyorBelt(vector<string>& matrix, vector<int>& start, vector<int>& end) {
int dirs[5] = {-1, 0, 1, 0, -1};
unordered_map<char, int> d;
d['^'] = 0;
d['>'] = 1;
d['v'] = 2;
d['<'] = 3;
deque<pair<int, int>> q;
q.emplace_back(start[0], start[1]);
int m = matrix.size(), n = matrix[0].size();
int dist[m][n];
memset(dist, 0x3f, sizeof(dist));
dist[start[0]][start[1]] = 0;
while (1) {
auto [i, j] = q.front();
q.pop_front();
if (i == end[0] && j == end[1]) {
return dist[i][j];
}
for (int k = 0; k < 4; ++k) {
int x = i + dirs[k], y = j + dirs[k + 1];
int t = dist[i][j] + (k == d[matrix[i][j]] ? 0 : 1);
if (x >= 0 && x < m && y >= 0 && y < n && t < dist[x][y]) {
dist[x][y] = t;
if (dist[x][y] == dist[i][j]) {
q.emplace_front(x, y);
} else {
q.emplace_back(x, y);
}
}
}
}
}
};
Go
func conveyorBelt(matrix []string, start []int, end []int) int {
dirs := [5]int{-1, 0, 1, 0, -1}
d := map[byte]int{
'^': 0,
'>': 1,
'v': 2,
'<': 3,
}
q := [][2]int{[2]int{start[0], start[1]}}
m, n := len(matrix), len(matrix[0])
dist := make([][]int, m)
for i := range dist {
dist[i] = make([]int, n)
for j := range dist[i] {
dist[i][j] = 1 << 30
}
}
dist[start[0]][start[1]] = 0
for {
p := q[0]
i, j := p[0], p[1]
if i == end[0] && j == end[1] {
return dist[i][j]
}
q = q[1:]
for k := 0; k < 4; k++ {
x, y := i+dirs[k], j+dirs[k+1]
t := dist[i][j]
if k != d[matrix[i][j]] {
t++
}
if x >= 0 && x < m && y >= 0 && y < n && t < dist[x][y] {
dist[x][y] = t
if dist[x][y] == dist[i][j] {
q = append([][2]int{[2]int{x, y}}, q...)
} else {
q = append(q, [2]int{x, y})
}
}
}
}
}
TypeScript
function conveyorBelt(matrix: string[], start: number[], end: number[]): number {
const dirs = [-1, 0, 1, 0, -1];
const d: Map<string, number> = new Map();
d.set('^', 0);
d.set('>', 1);
d.set('v', 2);
d.set('<', 3);
const q: number[][] = [start];
const m = matrix.length;
const n = matrix[0].length;
const dist: number[][] = Array(m)
.fill(0)
.map(() => Array(n).fill(1 << 30));
dist[start[0]][start[1]] = 0;
while (true) {
const [i, j] = q.shift()!;
if (i === end[0] && j === end[1]) {
return dist[i][j];
}
for (let k = 0; k < 4; ++k) {
const x = i + dirs[k];
const y = j + dirs[k + 1];
const t = dist[i][j] + (d.get(matrix[i][j]) === k ? 0 : 1);
if (x >= 0 && x < m && y >= 0 && y < n && t < dist[x][y]) {
dist[x][y] = t;
if (t == dist[i][j]) {
q.unshift([x, y]);
} else {
q.push([x, y]);
}
}
}
}
}
Swift
class Solution {
func conveyorBelt(_ matrix: [String], _ start: [Int], _ end: [Int]) -> Int {
let directions: [(Int, Int)] = [(-1, 0), (0, 1), (1, 0), (0, -1)]
let directionMap: [Character: Int] = ["^": 0, ">": 1, "v": 2, "<": 3]
let rows = matrix.count
let cols = matrix[0].count
var dist = Array(repeating: Array(repeating: Int.max, count: cols), count: rows)
var deque: [(Int, Int)] = []
dist[start[0]][start[1]] = 0
deque.append((start[0], start[1]))
while !deque.isEmpty {
let (i, j) = deque.removeFirst()
if i == end[0] && j == end[1] {
return dist[i][j]
}
for (k, (di, dj)) in directions.enumerated() {
let ni = i + di
let nj = j + dj
if ni >= 0 && ni < rows && nj >= 0 && nj < cols {
let currentChar = matrix[i][matrix[i].index(matrix[i].startIndex, offsetBy: j)]
let additionalCost = directionMap[currentChar] == k ? 0 : 1
let newDist = dist[i][j] + additionalCost
if newDist < dist[ni][nj] {
dist[ni][nj] = newDist
if additionalCost == 0 {
deque.insert((ni, nj), at: 0)
} else {
deque.append((ni, nj))
}
}
}
}
}
return -1
}
}
